Displays pedal pressure during brake test

Brake pedal pressure meter 13020

User manual 13020
PDF ikon viser at dette er et PDF dokument
Product sheet 13020
PDF ikon viser at dette er et PDF dokument



Part no.

13020



Standard



Application:

The pedal pressure gauge measures the pedal pressure during brake tests and is used primarily with roller brake tests and other special test systems in the auto industry.

Handicap:

Can also be used to test the pressure capability of people with reduced function in the legs.



Displays pedal pressure during brake test

Product description:

The brake pedal pressure gauge measures the current pedal pressure, and shows the measurement on a 3½ digit L.C.D. display

Function selector:

* Current pedal pressure; or maximum pedal pressure with display hold function.
* By switching to the “Hold” function, the instrument will display the maximum pedal pressure used during the test.
* Zero adjustment of signal on front panel.
* The sensor is easy to mount on the brake pedal with a strong rubber band.

NB! Shockproof ABS housing no. 13020/13025

Approved by Dutch NMI

Technical specifications:



Measuring range: 0 – 150 dN (kgp)
Linearity: 0.7%  0 – 100 dN
Temp. coefficient: 0.2%  pr. 10° C
Temperature range: 0 – 60° C
Sensor dimensions: 65 mm x 52 mm x 32 mm
Cable: 2 M spiral cable
Cabinet dimensions: L: 160 mm
W: 80 mm
H: 60 mm
Weight: 0.7 KG
Batteries: 8 x 1.5 V, type LR06
Battery indicator: Lobat display
Battery life: Approx. 60 hours
Sidebar Mail Raco

Send us an email with your order: order@raco.dk

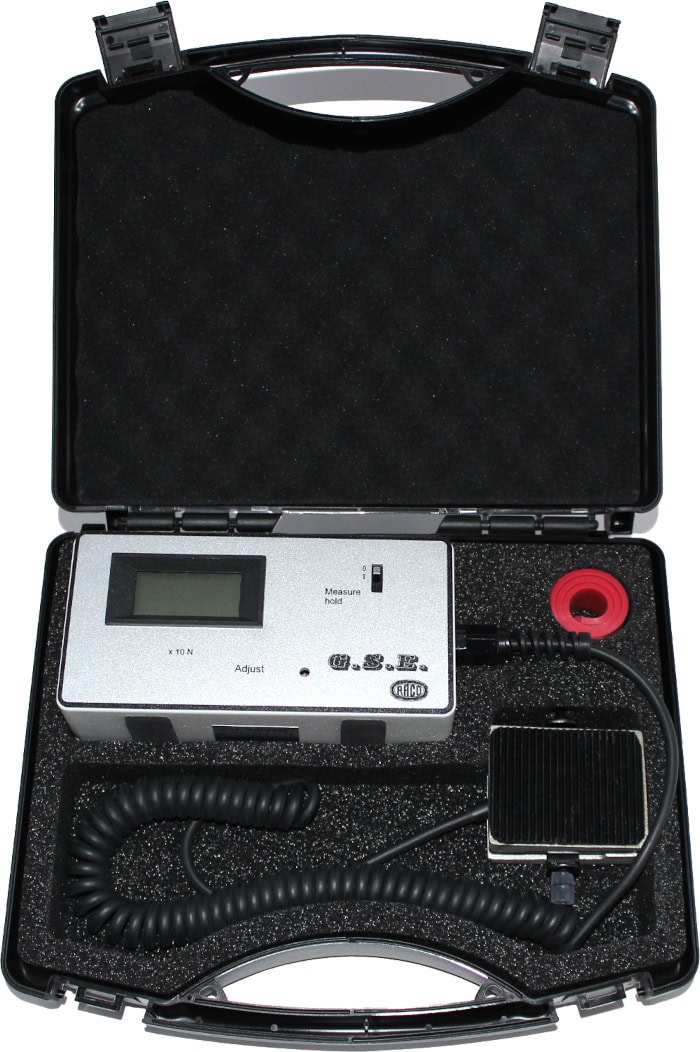

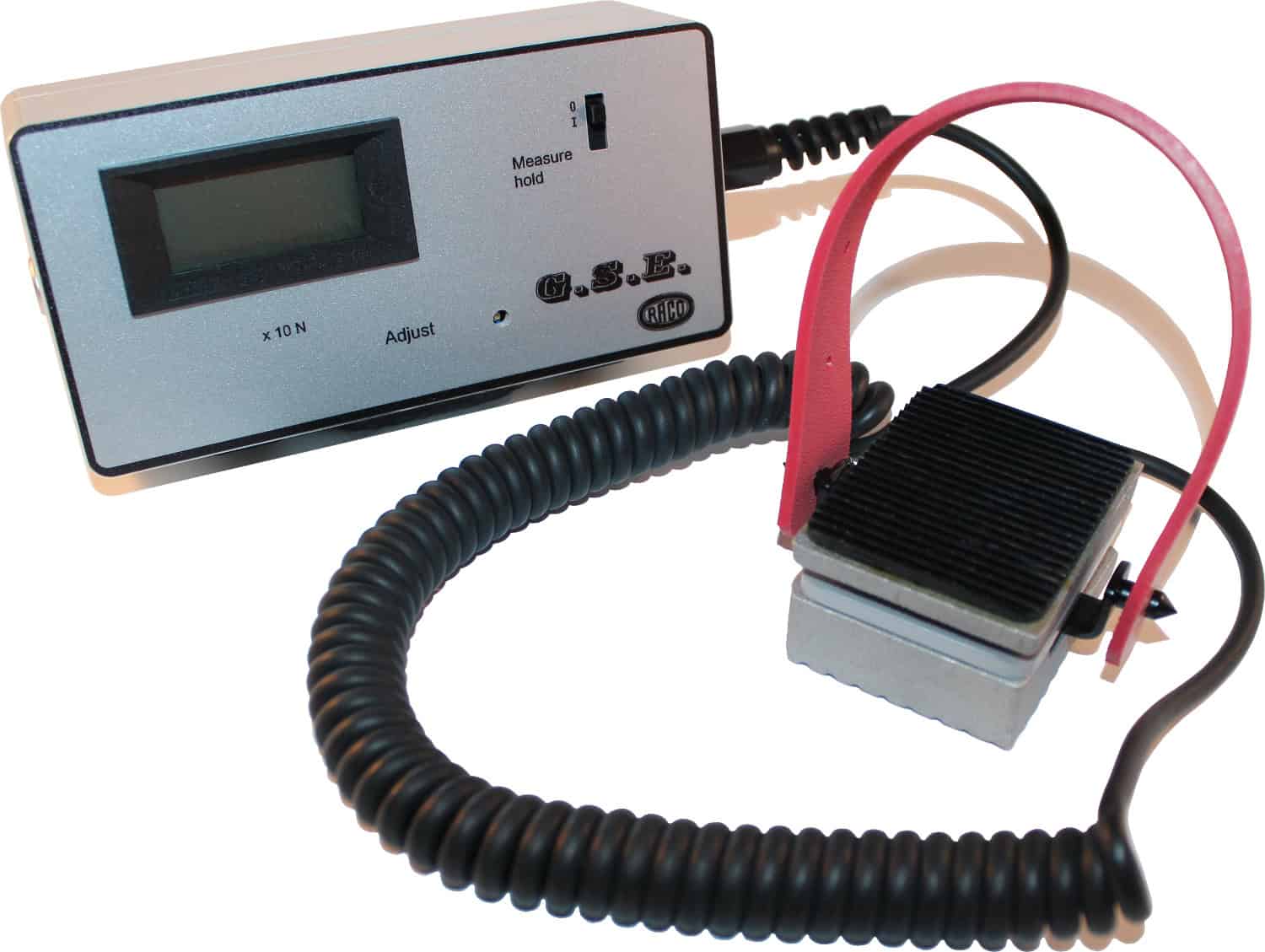

Brake pedal pressure meter 13025

User manual 13025
PDF ikon viser at dette er et PDF dokument
Product sheet 13025
PDF ikon viser at dette er et PDF dokument



Part no.

13025



With analog voltage output



Application:

The pedal pressure gauge measures the pedal pressure during brake tests and is used primarily with roller brake tests and other special test systems in the auto industry.

Handicap:

Can also be used to test the pressure capability of people with reduced function in the legs.



Displays pedal pressure during brake test

Product description:

The brake pedal pressure gauge measures the current pedal pressure, and shows the measurement on a 3½ digit L.C.D. display

Function selector:

* Current pedal pressure; or maximum pedal pressure with display hold function.
* By switching to the “Hold” function, the instrument will display the maximum pedal pressure used during the test.
* Zero adjustment of signal on front panel.
* The sensor is easy to mount on the brake pedal with a strong rubber band.

NB! Shockproof ABS housing no. 13020/13025

Approved by Dutch NMI

Technical specifications:



Measuring range: 0 – 150 dN (kgp)
Linearity: 0.7%  0 – 100 dN
Temp. coefficient: 0.2%  pr. 10° C
Temperature range: 0 – 60° C
Sensor dimensions: 65 mm x 52 mm x 32 mm
Cable: 2 M spiral cable
Cabinet dimensions: L: 160 mm
W: 80 mm
H: 60 mm
Weight: 0.7 KG
Batteries: 8 x 1.5 V, type LR06
Battery indicator: Lobat display
Battery life: Approx. 60 hours
Analog current
output signal:
10 mV pr Kp

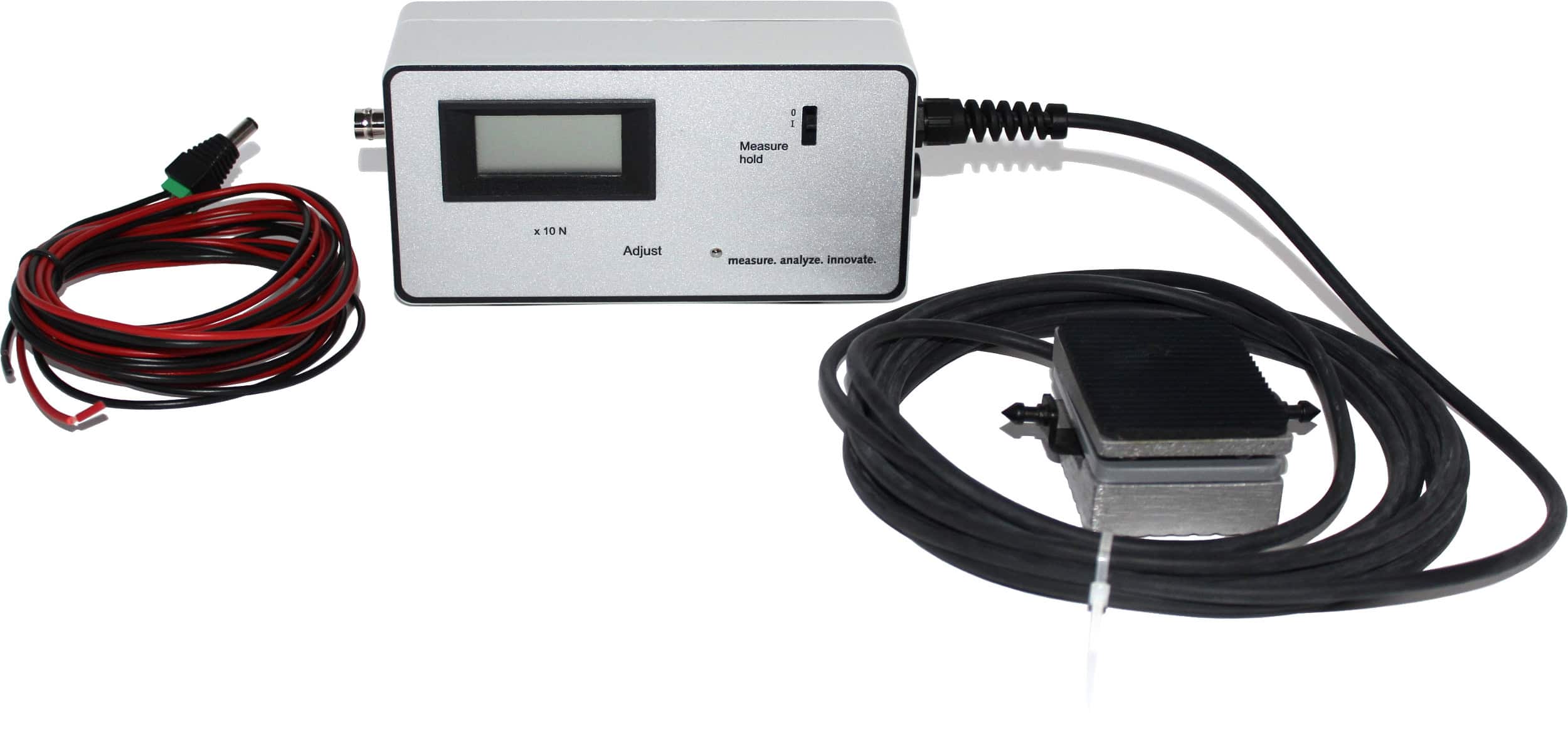

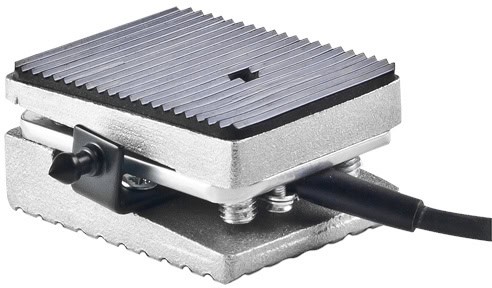

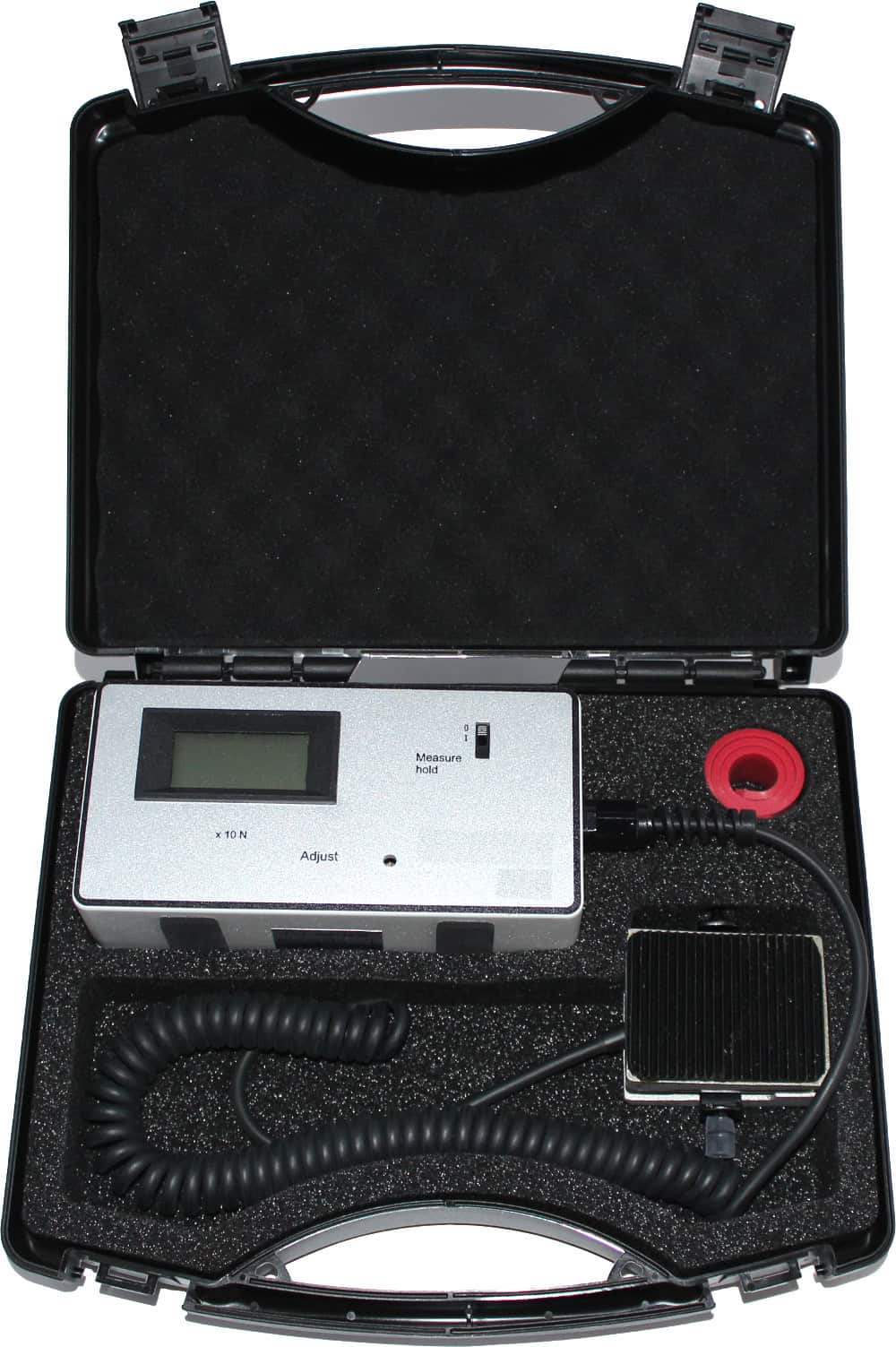

Brake pedal pressure meter 13026

User manual 13026
PDF ikon viser at dette er et PDF dokument
Product sheet 13026
PDF ikon viser at dette er et PDF dokument



Part no.

13026



For external power source



Application:

The pedal pressure gauge measures the pedal pressure during brake tests and is used primarily with roller brake tests and other special test systems in the auto industry.

Handicap:

Can also be used to test the pressure capability of people with reduced function in the legs.



Displays pedal pressure during brake test

Special for 13026:

Can be connected to an external battery or other power source.

Product description:

The brake pedal pressure gauge measures the current pedal pressure, and shows the measurement on a 3½ digit L.C.D. display

Function selector:

* Current pedal pressure; or maximum pedal pressure with display hold function.
* By switching to the “Hold” function, the instrument will display the maximum pedal pressure used during the test.
* Zero adjustment of signal on front panel.
* The sensor is easy to mount on the brake pedal with a strong rubber band.

Approved by Dutch NMI

Technical specifications:



DC plug: Red/Black cable included
Measuring range: 0 – 100 dN (kgp)
Linearity: 0.7%  0 – 100 dN
Temp. coefficient: 0.2%  pr. 10° C
Temperature range: 0 – 60° C
Sensor dimensions: 65 mm x 52 mm x 32 mm
Cable: 2 M spiral cable
Cabinet dimensions: L: 160 mm
W: 80 mm
H: 60 mm
Weight: 0.7 KG

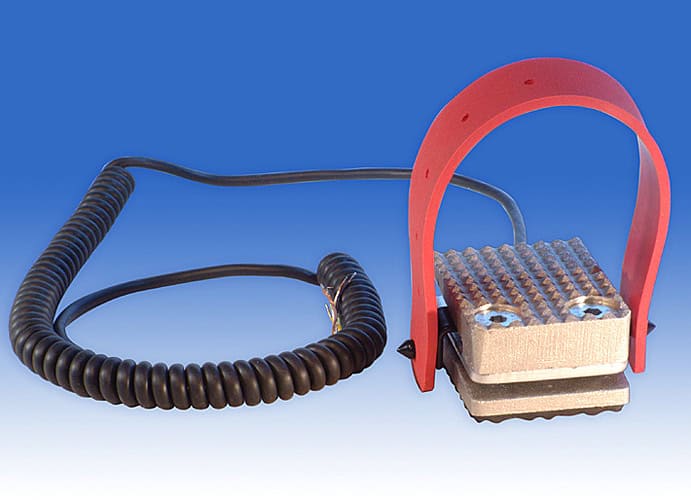

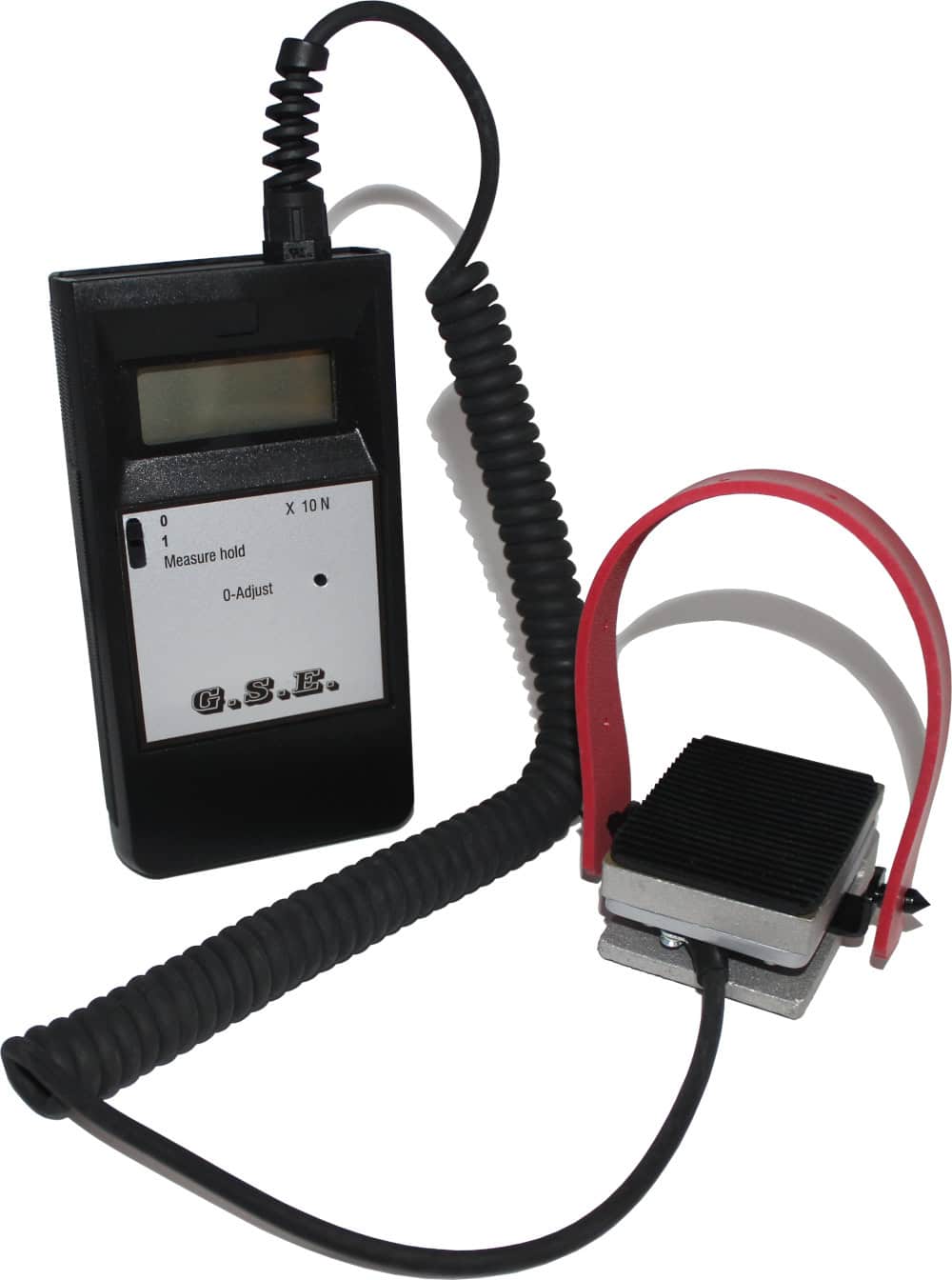

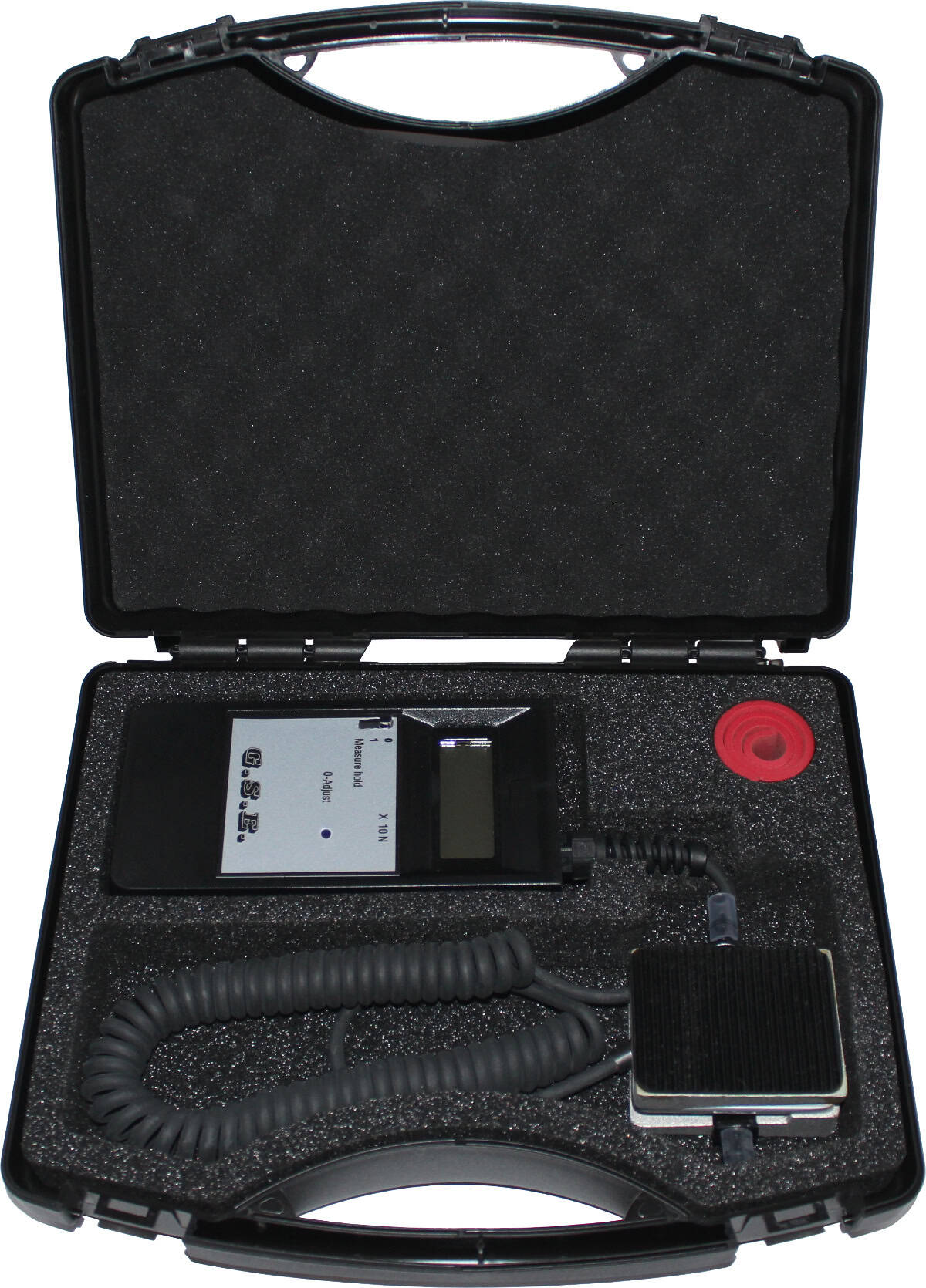

Brake pedal pressure meter 13060

User manual 13060
PDF ikon viser at dette er et PDF dokument
Product sheet 13060
PDF ikon viser at dette er et PDF dokument



Part no.

13060



Automatic switch-off function



Application:

The pedal pressure gauge measures the pedal pressure during brake tests and is used primarily with roller brake tests and other special test systems in the auto industry.

Handicap:

Can also be used to test the pressure capability of people with reduced function in the legs.



Displays pedal pressure during brake test

Product description:

The brake pedal pressure gauge measures the current pedal pressure, and shows the measurement on a 3½ digit L.C.D. display

Function selector:

* Current pedal pressure; or maximum pedal pressure with display hold function.
* By switching to the “Hold” function, the instrument will display the maximum pedal pressure used during the test.
* Zero adjustment of signal on front panel.
* The sensor is easy to mount on the brake pedal with a strong rubber band.

Technical specifications:



Measuring range: 0 – 150 dN (kgp)
Linearity: 0.7%  0 – 100 dN
Temp. coefficient: 0.2%  pr. 10° C
Temperature range: 0 – 60° C
Sensor dimensions: 65 mm x 52 mm x 32 mm
Cable: 2 M spiral cable
Cabinet dimensions: L: 150 mm
W: 80 mm
H: 30 mm
Weight: 0.58 KG
Batteries: 1 x 9 V, type 6LR61
Battery indicator: Lobat display
Battery life: Approx. 20 hours
Automatic switch off time: Approx. 4 minutes

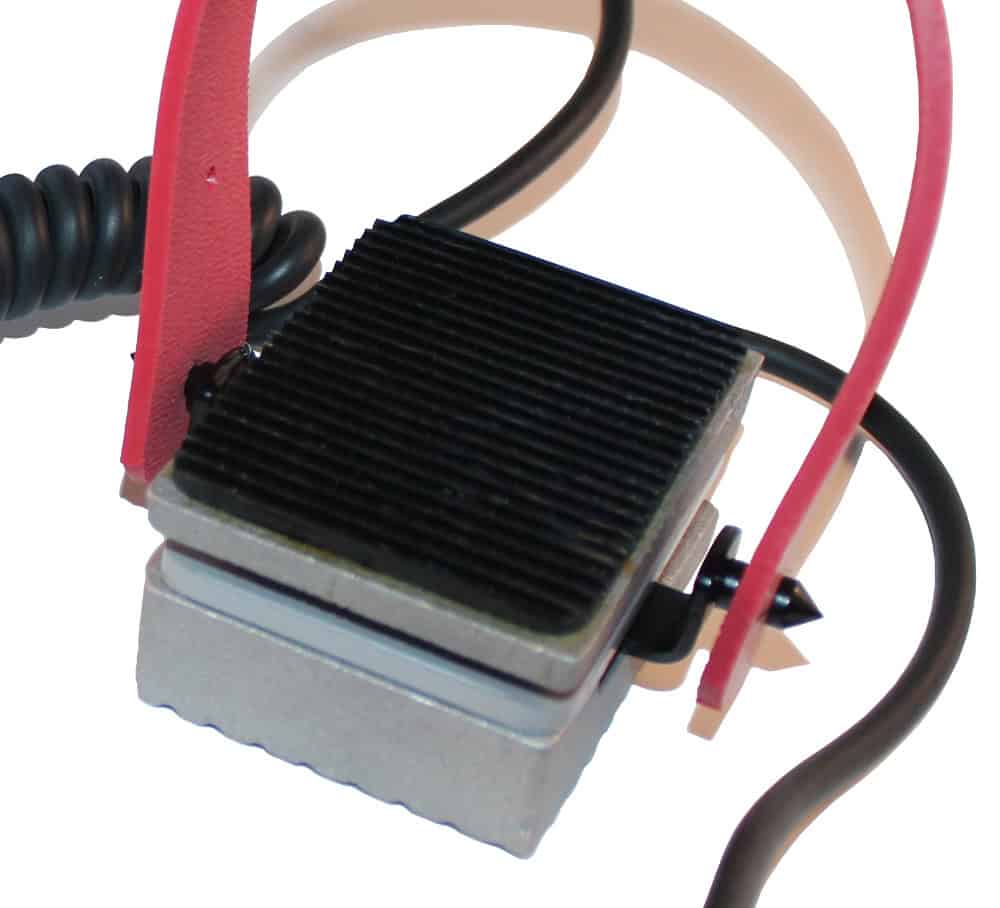

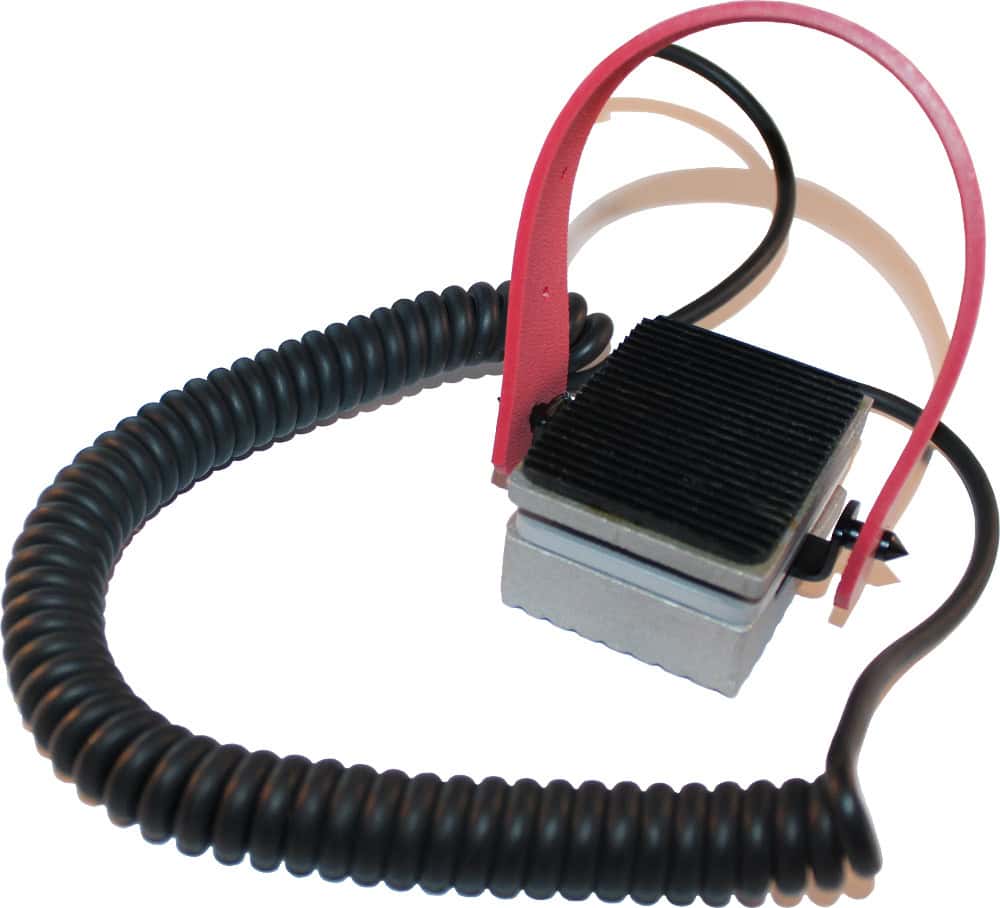

Brake pedal pressure sensor 13210



Part no.

13210



Without amplifier



Application:

Pedal pressure sensor is used together with the Brake pedal pressure gauge.

Known for:

Pedal Pressure Sensor is known for its high accuracy, low weight and simple attachment to the brake pedal.

Product description:

Since 1978, the Pedal Pressure Sensor has been supplied to leading manufacturers of roller brake testers. Including several times to the Danish Car Inspectorate. Pedal pressure The sensor is also used in instruments approved by NMI in the Netherlands.

Application:

* Strain gauge full-bridge is used as a measurement principle.

Tekniske specifikationer:



Measuring range: 0 – 100 dN
+ overload 50 dN (Kgp)
Linearity: 0,7% 0 – 100 dN
Output signal: 1,3 mV / F.S.  ± 10%
Temp. coefficient: 0,2% pr. 10° C
Supply voltage: max. 7,5 V DC
Power consumption: 20 mA
Cable length: 5 M spiral kabel
Weight: 0,4 Kg.
Sensor dimensions: L : 65 mm
W : 52 mm
H : 32 mm
Adjustment: The 0 position is made by turning the screw located on the side of the cabinet.
Linearity setting is done by turning the screw located on the side of the sensor.

Brake pedal pressure sensor 13220



Part no.

13220



With amplifier



Amplifier:

The amplifier sits in a small box on the cable. By default, 5 meters long PUR cable is supplied, can also be supplied with spiral cable. 13220 is equipped with Lemosa G. pole connector.

Application:

Pedal pressure sensor is used together with the Brake pedal pressure gauge.

Known for:

Pedal Pressure Sensor is known for its high accuracy, low weight and simple attachment to the brake pedal.

Product description:

Since 1978, the Pedal Pressure Sensor has been supplied to leading manufacturers of roller brake testers. Including several times to the Danish Car Inspectorate. Pedal pressure The sensor is also used in instruments approved by NMI in the Netherlands.

Application:

* Strain gauge full-bridge is used as a measurement principle.

Tekniske specifikationer:



Measuring range: 0 – 100 dN
+ overload 50 dN (Kgp)
Linearity: 0,7% 0 – 100 dN
Output signal: 0-1V at 100 dN, max. 3V
Temp. coefficient: 0,2% pr. 10° C
Input voltage: 7 – 15 V DC
Power consumption: max. 25 mA
Cable length: By request
Sensor dimensions: L : 65 mm
W : 52 mm
H : 32 mm
Adjustment: The 0 position is made by turning the screw located on the side of the cabinet.
Linearity setting is done by turning the screw located on the side of the sensor.
