Battery terminal Various Easy click Adapter
Battery terminal Various Easy click Adapter
Battery terminal 225000
| Part no | 225000 |
| For + pole Positive Plus |
| Pole diameter Ø 19 mm |
| Material: Brass tin-plated |
| Internal threaded |
| Cable: For DIN/USA Quick |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 226000
| Part no | 226000 |
| For – pole Negative Minus |
| Pole diameter Ø 17 mm |
| Material: Brass tin-plated |
| Internal threaded |
| Cable: For DIN/USA Quick |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 249000
| Part no | 249000 |
| For + pole Positive Plus |
| Pole diameter Ø 19 mm |
| Material: Brass tin-plated |
| Adapter for Ford flat poles Fordkit solderless |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 250000
| Part no | 250000 |
| For – pole Negative Minus |
| Pole diameter Ø 17 mm |
| Material: Brass tin-plated |
| Adapter for Ford flat poles Fordkit solderless |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 255000
| Part no | 255000 |
| For + pole Positive Plus |
| Pole diameter Ø 19 mm |
| Material: Brass tin-plated |
| With red plastic cover hood |
| Cable size: 16 – 70 mm² |
| “Easy Click” can be assembled and disassembled in seconds. |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 256000
| Part no | 256000 |
| For – pole Negative Minus |
| Pole diameter Ø 17 mm |
| Material: Brass tin-plated |
| With blue plastic cover hood |
| Cable size: 16 – 70 mm² |
| “Easy Click” can be assembled and disassembled in seconds. |
Battery terminal Various Easy click Adapter
3D icon indicates that this is a 3D drawing
Click on me
Battery terminal 265000
| Part no | 265000 |
| For + pole Positive Plus |
| Pole diameter Ø 19 mm to 14 mm |
| If the vehicle’s existing battery terminals are “small pole” and the new battery has “large pole” |
| Delivered as 1 pc. |
Battery terminal 266000
| Part no | 266000 |
| For – pole Negative Minus |
| Pole diameter Ø 17 mm to 12 mm |
| If the vehicle’s existing battery terminals are “small pole” and the new battery has “large pole” |
| Delivered as 1 pc. |
Battery terminals 265266
| Part no | 265266 |
| Pole diameter Ø 19 mm to 14 mm Pole diameter Ø 17 mm to 12 mm |
| If the vehicle’s existing battery terminals are “small pole” and the new battery has “large pole” |
| Battery terminals adapter DXL set +/– pole, blister pack |
| Delivered in a set of 2 pcs. and in blister pack. |
Battery terminal 224500
| Part no | 224500 |
| For – pole Negative Minus |
| Pole diameter Ø 17 mm |
| Material: Brass tin-plated |
| Connection: ground ribbon, earth strap, earth cable, wire braid |
| Industrial packaging |
3D icon indicates that this is a 3D drawing
Click on me

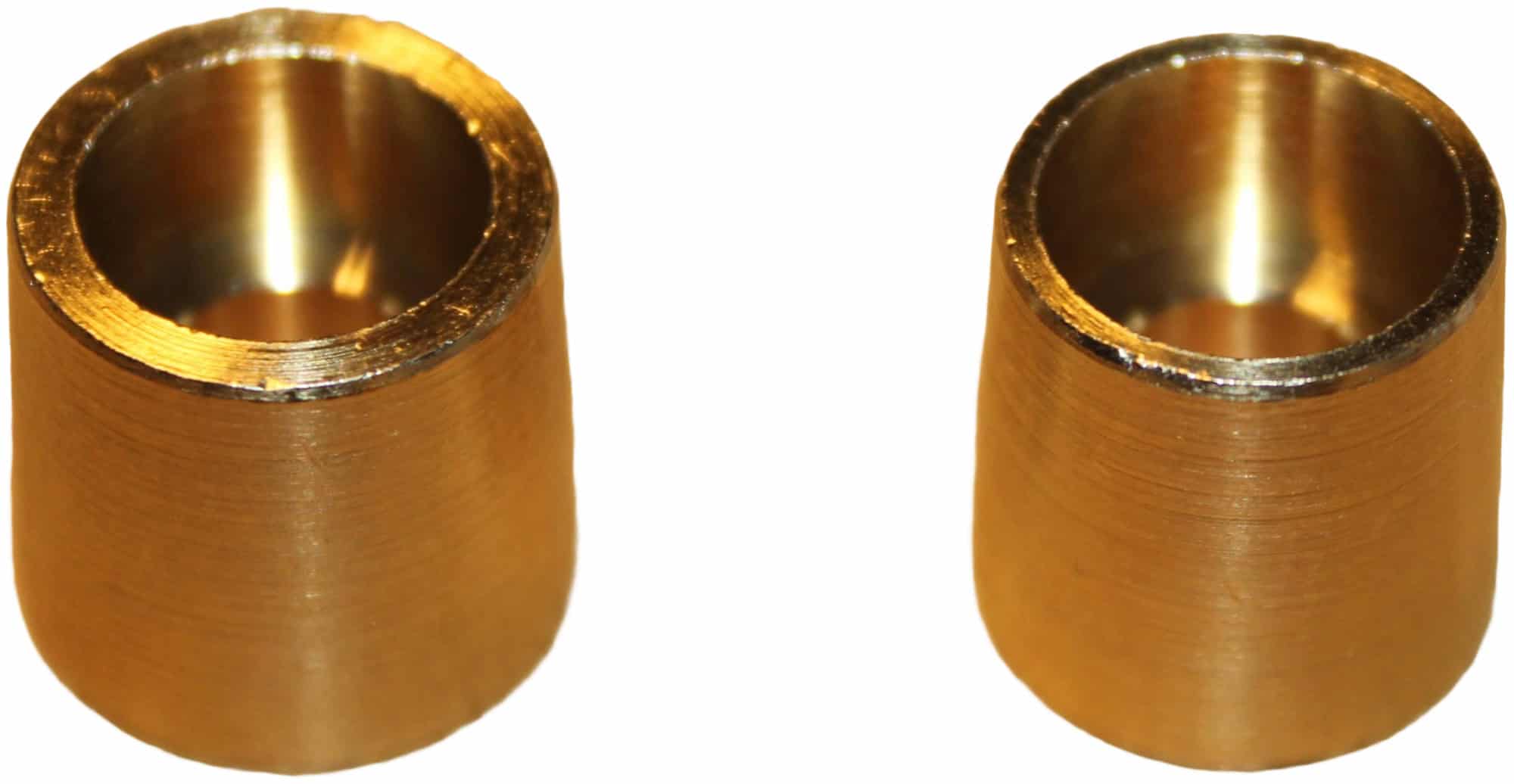

Battery terminal 020100
| Part no | 020100 |

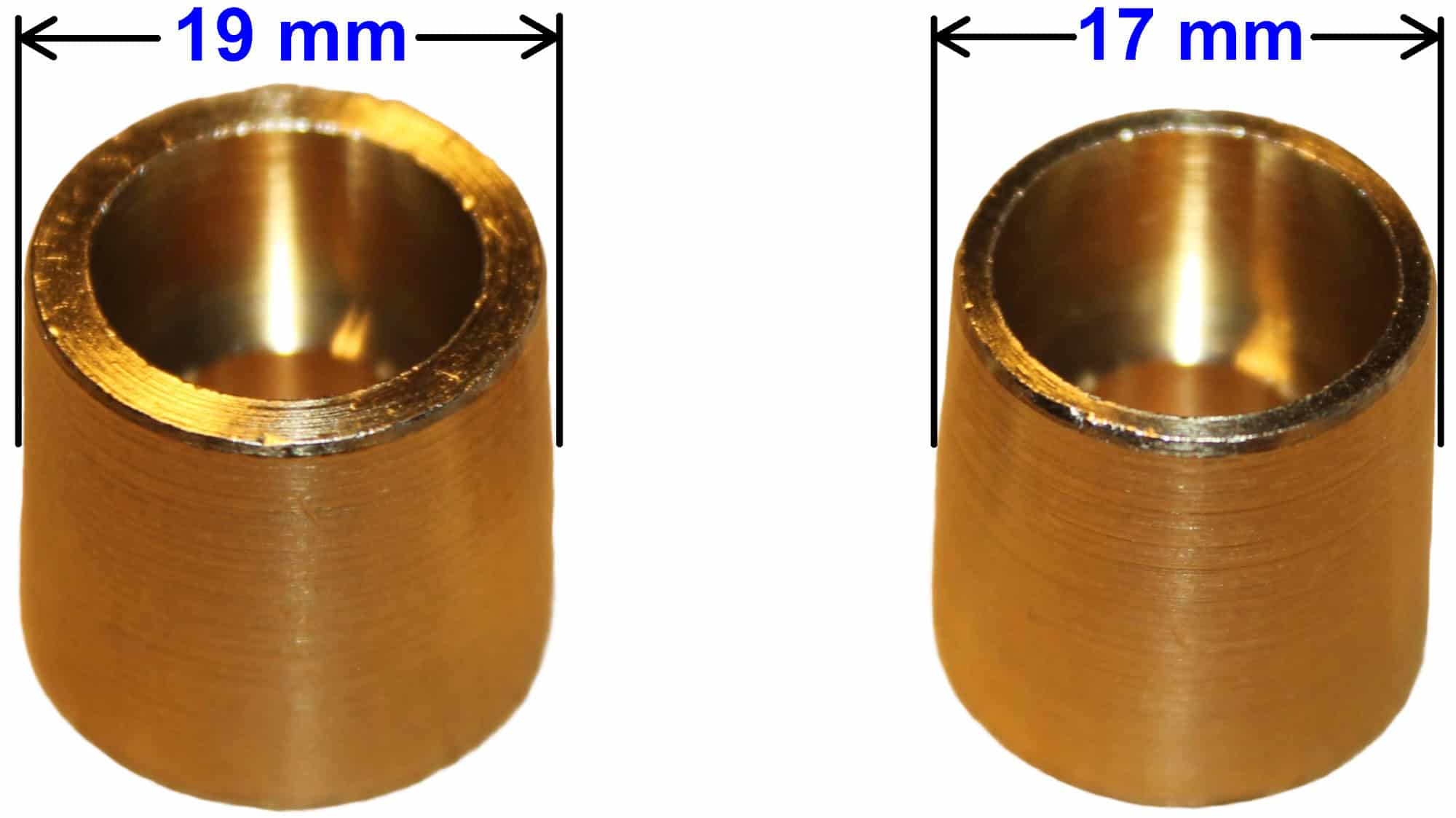

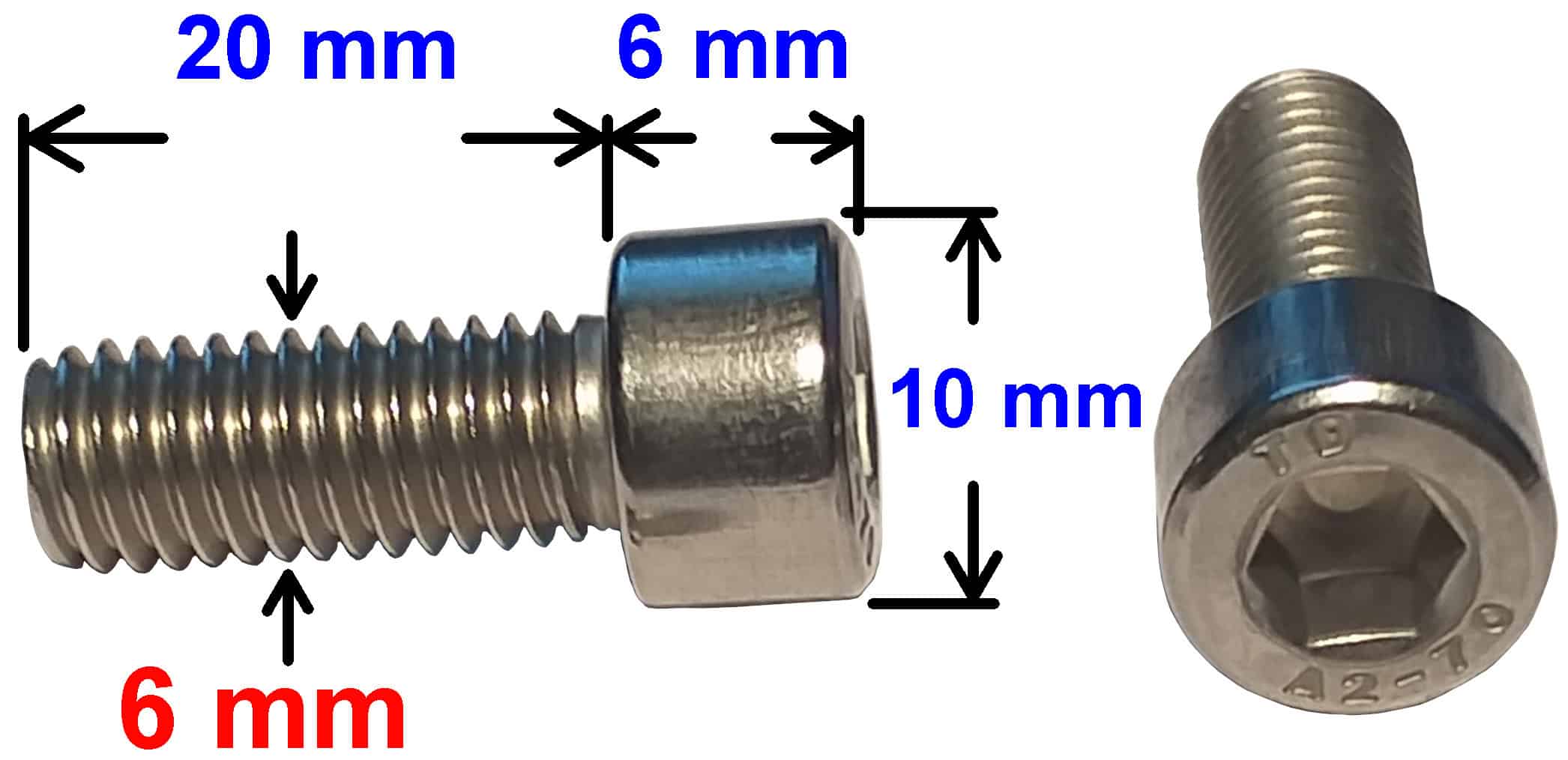

| Terminal set diameter Ø 19 mm and Ø 17 mm with 6 mm screws |
| If the battery (12FGL42) has screw holes, you can use this adapter set. |
|

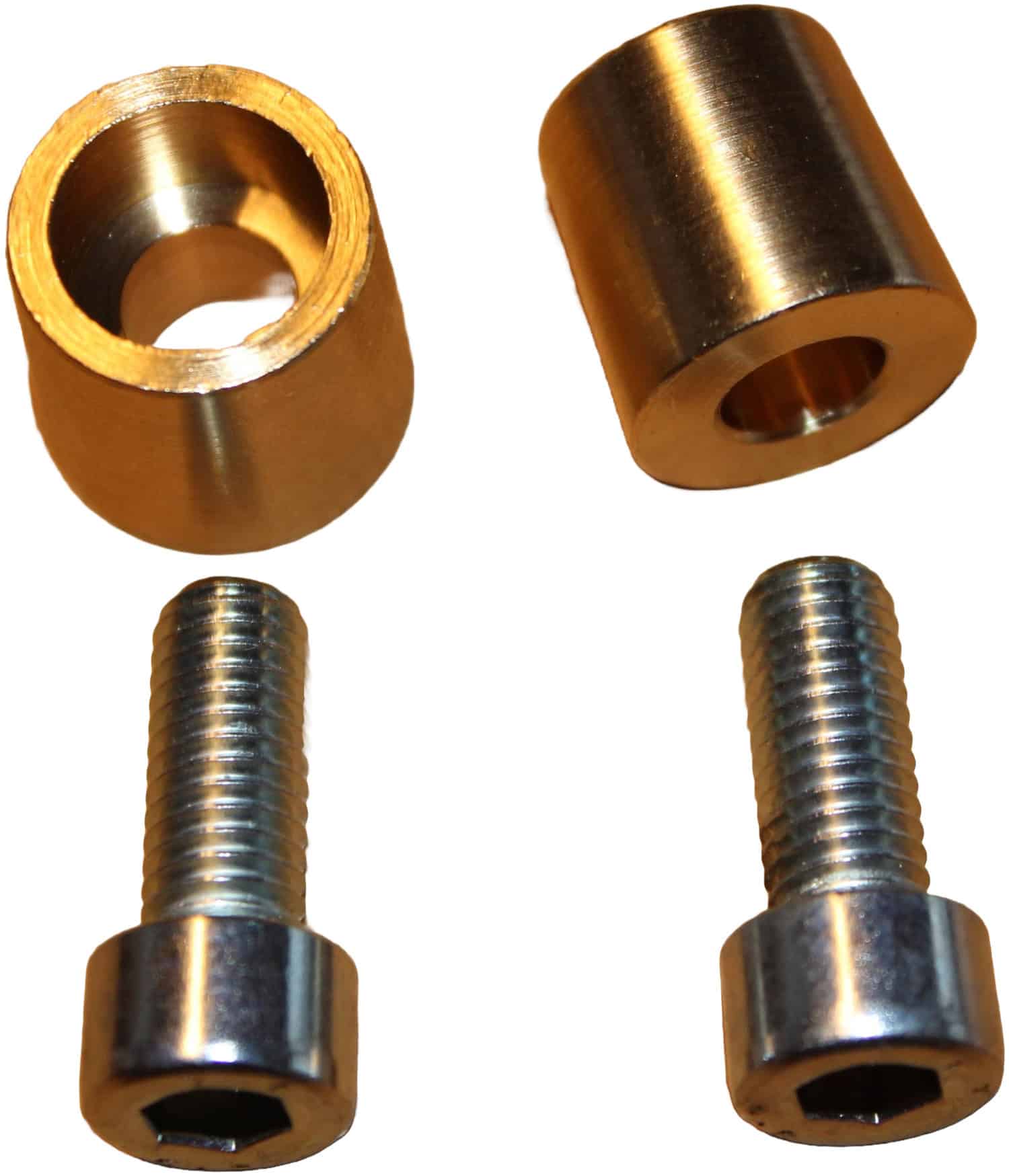

Battery Top Post set contains 1 conical pole for positive terminal 1 conical pole for negative terminal 2 pcs. 6 mm screws |
| Delivered in a set |
Battery terminal 020101
| Part no | 020101 |

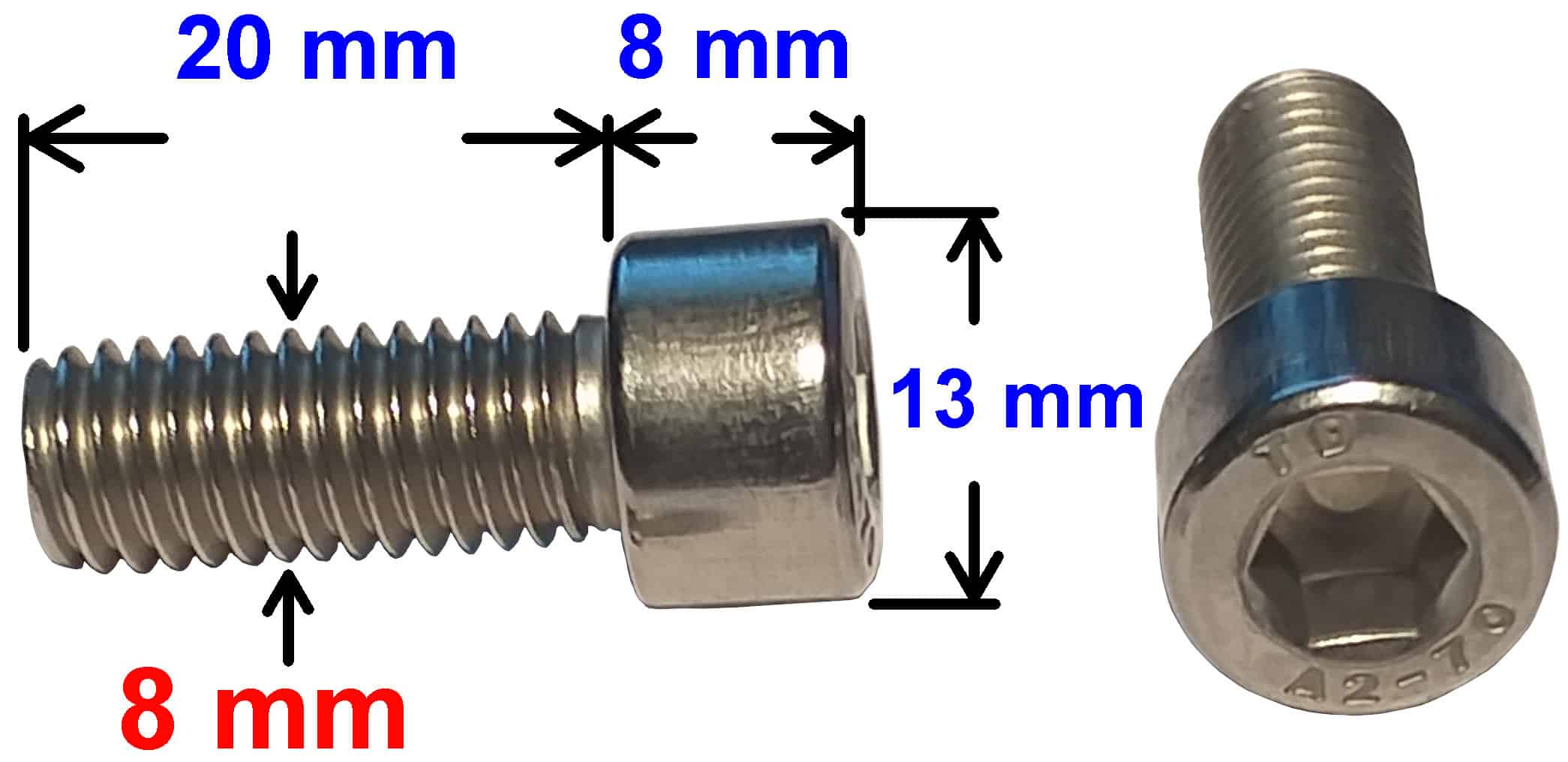

| Terminal ser diameter Ø 19 mm and Ø 17 mm with 8 mm screws |
| If the battery (12FGL42) has screw holes, you can use this adapter set. |
|

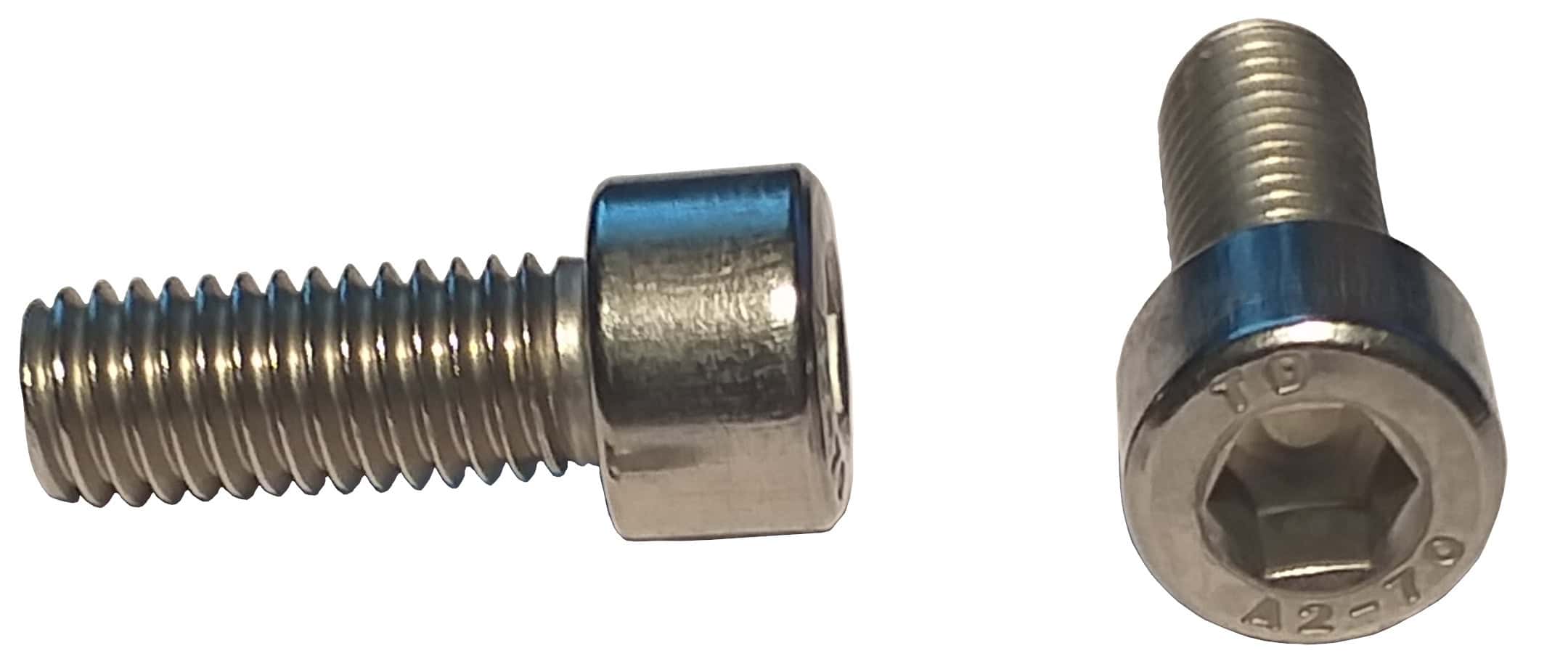

Battery Top Post set contains 1 conical pole for positive terminal 1 conical pole for negative terminal 2 pcs. 8 mm screws |
| Delivered in a set |
